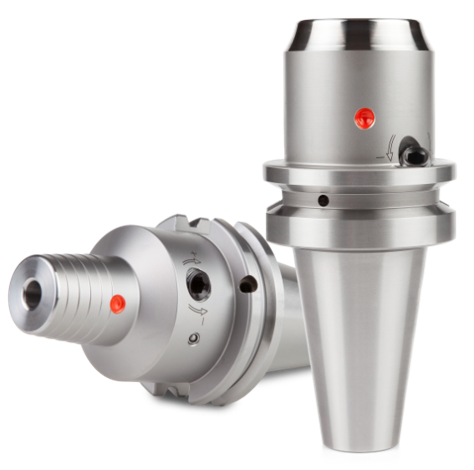

Unleash precision with the hydraulic chuck
High performance, superior clamping force
Field of application Application
Application: Milling, drilling
Machine type: Machining centres
Features
- High concentricity: 0.003 mm (at 3xD)
- Good torque transmission
- Axial length adjustment
- Vibration-damping tool clamping
- Flexible due to the use of sleeves
Advantages of hydraulic chucks
- High torque transmission
- Hydraulic chucks offer an exceptionally high torque transmission that far exceeds that of conventional collet chucks. This enables more precise and efficient machining, even in demanding applications.
- Temperature-resistant design
- These chucks are specially developed to withstand high temperatures, which significantly improves their suitability for use in thermally intensive machining processes. The clamping force remains consistently high even at rising temperatures.
- Outstanding concentricity
- The design of the hydraulic chucks guarantees excellent concentricity. This reduces vibrations and increases the quality of the machined workpieces.
- Easy handling and interchangeability
- The system enables quick and easy tool changes, which reduces set-up times and increases productivity in production. The chucks can also be used in different machine types without any problems.
- Longer tool life
- Thanks to the precise clamping force and high concentricity, the tools are subjected to less stress, resulting in a longer service life and therefore lower tool costs.
- Slim design
- The slim design of the hydraulic chucks allows them to be used in confined machine spaces and increases flexibility when machining complex workpieces.
- Increased process reliability
- Thanks to their robust and precise design, hydraulic chucks offer a high level of process reliability and stability, minimising downtimes and increasing overall productivity.
- Wide range of possible applications
- Hydraulic chucks are suitable for a variety of machining processes, including drilling, milling and reaming, making them a versatile solution for a wide range of industrial applications.
