HEAVY DUTY

Application

Application: Automatic device with liquid cooling for heavy holders, cooling time: 45 s

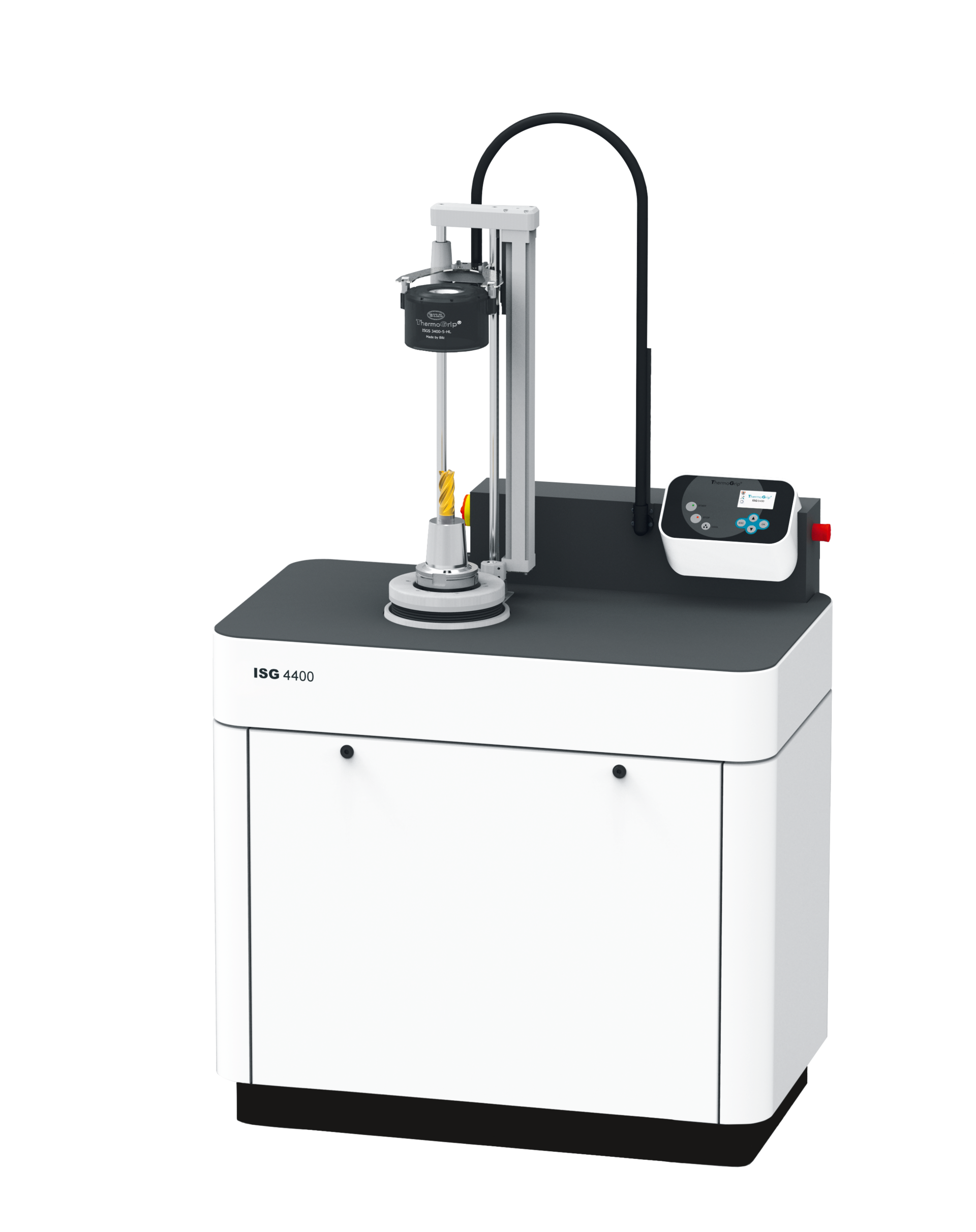

The ISG 4410 WK- HL has been especially designed for heavy machining. An optional pivoted coil guide means that a loading of the shrink machine with a lever system is easy. After each shrinking cycle the coil tower moves laterally away from the shrinking position at a 90° angle.

Due to the high weight of the shrink holders with tool ( up to 40 kg ), a new cooling concept has been developed. The difference in the ISG 4410 WK- HL is that the cooling facility moves upwards from the housing and sprays the shrink chuck from all sides.

Besides the advantages of liquid cooling, the machine offers the following highlights:

Features

• Shrinking range from Ø 3 mm up to Ø 51mm (2”)
• Shrink-fit holder external diameter max. 90 mm
• For tools up to 40 kg
• Designed for lifting devices
• Up to HSK-A 125, SK 50, BT 50 or CAT 50
• Tool length 710 mm
• Fully automatic shrinking and cooling cycle
• Meets Aerospace requirements
