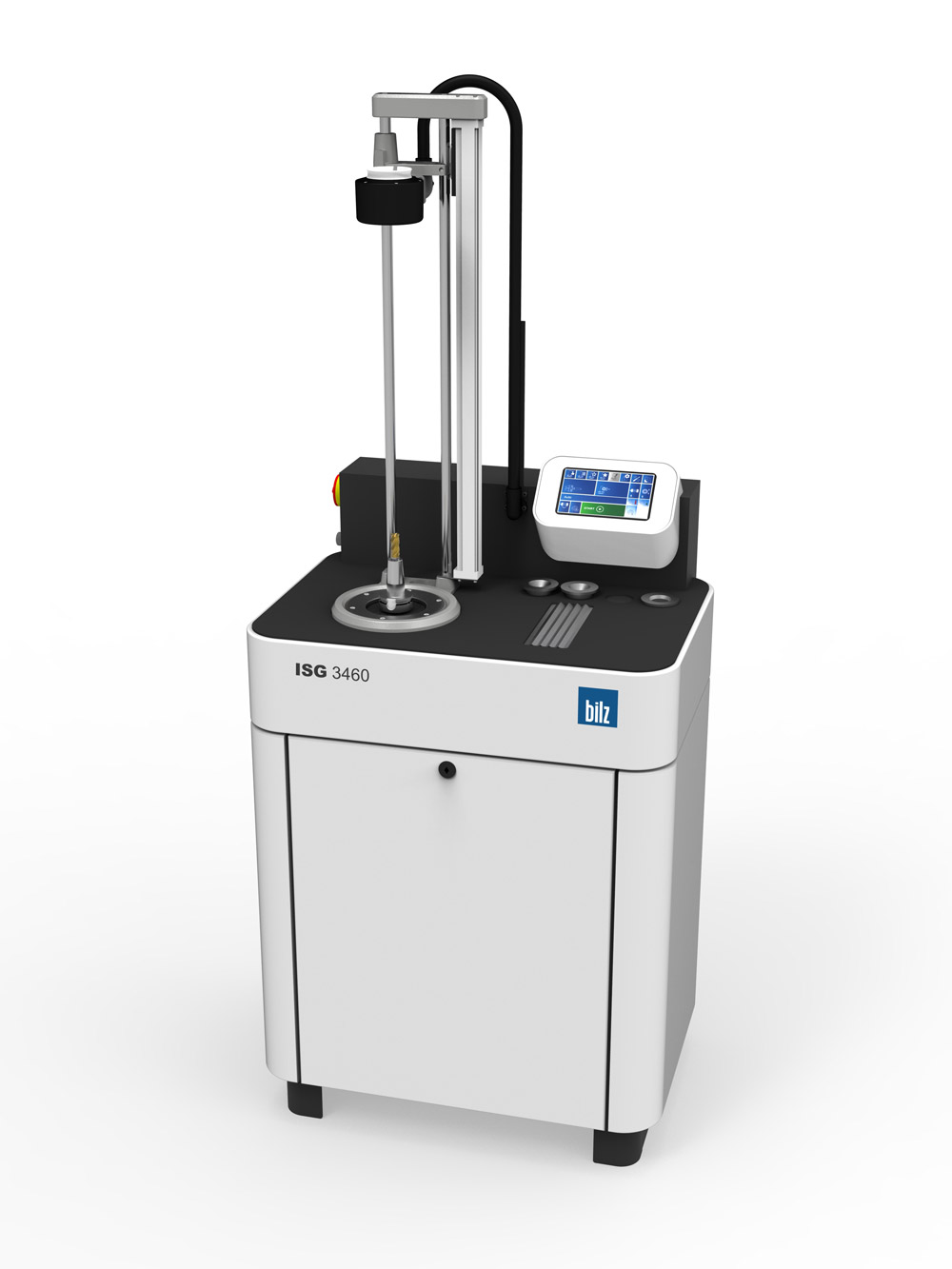

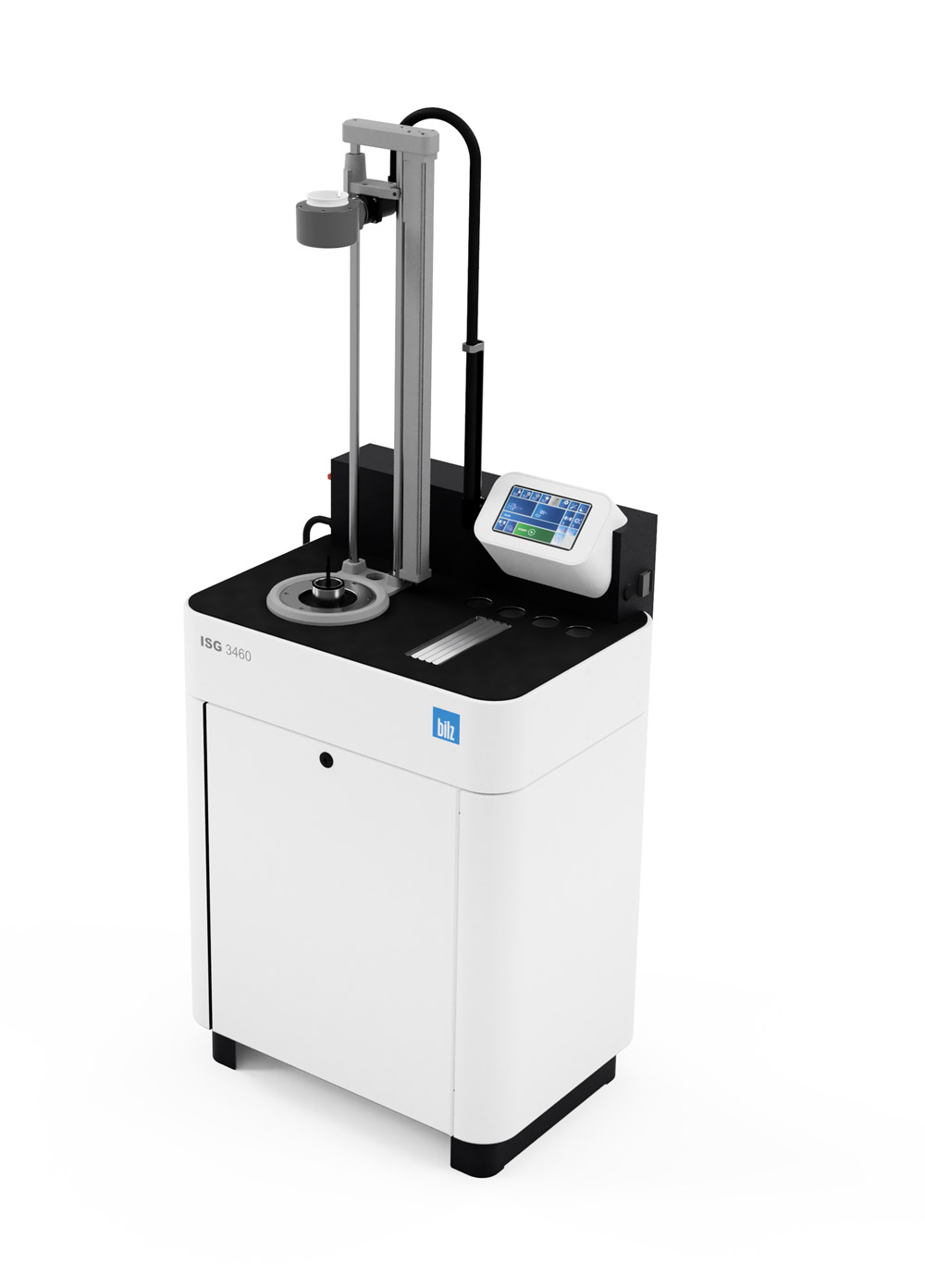

Shrinking device ISG3460

Field of application Application

Application: Clamping range HM: Ø 3-50mm; clamping range HSS: Ø 6-50mm

Professional and automated shrinking at a high level,
including integrated pneumatic twist-in device
for ThermoGrip® TMG lining.

Features

• Fully automatic cooling and subsequent drying of the shrink fit chucks
• Optionally available with quick change
• Touch display
• 20s cooling time
• 50 litre liquid tank

Shrink cycle

• Place the tool carrier and chuck in the shrink position of the induction unit.
• After selecting the shrinking parameters on our touch display and inserting the correct ferrite disc and coil, the shrinking process can be started by pressing the start button.
• Insert the collet chuck into the tool holder and screw it in by hand until the elastic stop can be felt (approx. 3 turns). The collet chuck only needs to be applied to the axial stop with a low torque. The tool can then be inserted into the collet chuck.
• The shrinking process is continued by pressing the start button.

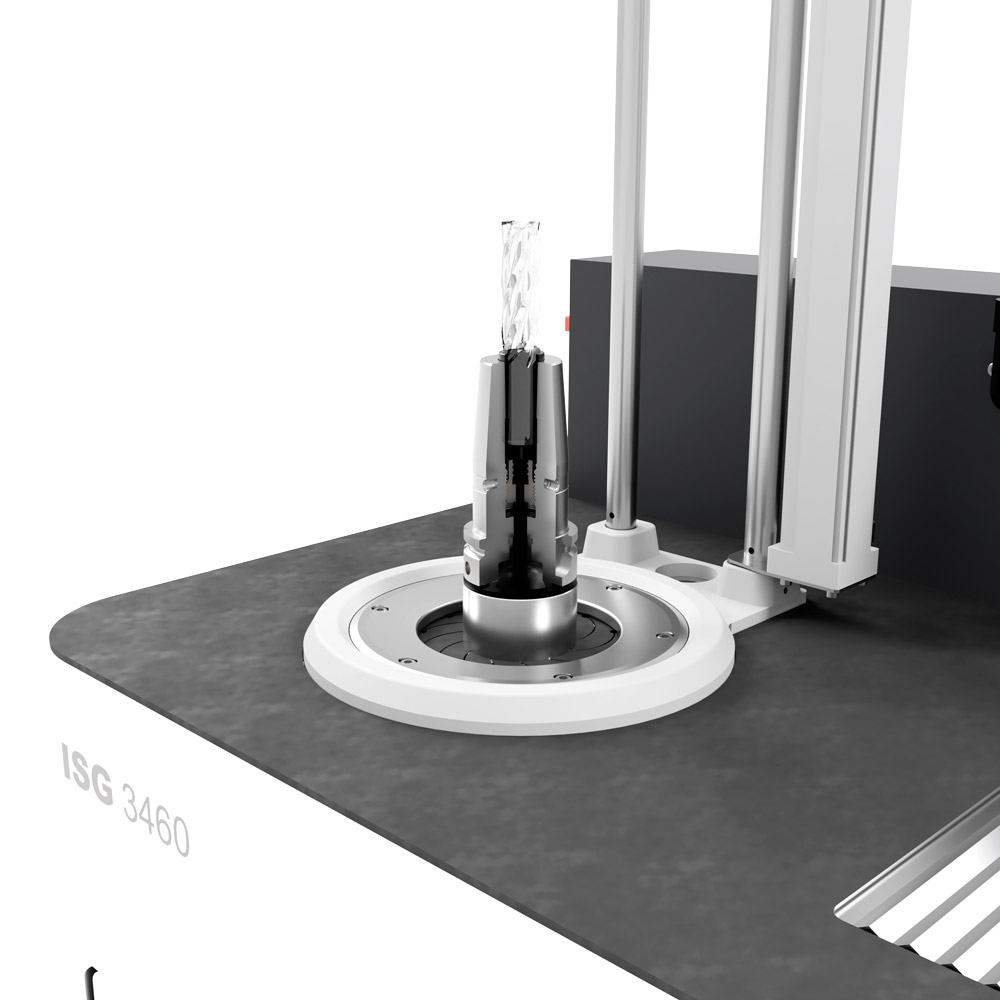

• With the ISG3460-WK, the shrink chuck is lowered into the cooling unit and then the coil is raised to the upper end position. After the cooling time, the chuck is slowly moved upwards and dried with compressed air. It can now be removed by the operator.

Order now!

Item number: 5193799

Scope of delivery

• incl. 4 interchangeable lenses
• 1000 ml cooling and corrosion protection
• Protective gloves and operating instructions
• Tool holders for all standard machine interfaces are optionally available
